Quick Details:

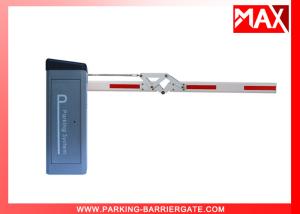

The MX-88 servo barrier gate series, which researched developed and manufactured by our company,
adopts international advanced technology, mechanical and electrical integrated design. Planetary gear drive,
high torque, un-blocked, oil tight, no noise, automatically unlocked when the power is off, with 10 million operation times.
The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), adjust to the global voltage,
high-speed operation and rapid response, it will not overheat after 24 hours, frequent operation, speed time can
be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging
and free-maintenance, achieve the fully automated and intelligent, and the barrier arm open/close is fast and smooth,
easy to use and safe.
Intelligent Barrier Specifications:
| Open/Close Time |
0.9sec,2.5sec,4.5sec |
| Max length of arm |
6mts |
| Power Supply |
24/100/240VAC,50/60Hz |
| Power Consumption |
100w |
| Machine Case |
Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) |
342*312*959mm |
| Net Weight |
42.6kg |
| Operating Temperature Range℃ |
-45℃~+85℃ |
| Driving Method |
Servo motor |
| Protection System(IP) |
54 |
| Insulation Class |
F |
| Relative Humidity |
≤90% |
| Motor No-load Speed |
3000r/min |
| Remote Control Distance |
≤100m (open, sunny weather) |
| Output Torque |
0.86N.M*140=120N.M |
| Running Noise＜ |
45dB |
DZ-138 Barrier Advanced Functions:
1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy
to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent
place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
DZ Controller Function Instruction:
1. NO/NC mode selection, in the dip switch 1, ON for NC, OFF for NO.
2. Self-locking when power off or gate automatically open selection. In dip switch 2, ON is for automatic opening when power off;
3. Automatic reverse or stop selection when meets external obstacle. In dip switch 3, ON is for automatic stop and OFF is for automatic reversing;
4. Auto closing speed adjustment selection, in the dip 4, 0.9s and 1.3s for option. ON is for 0.3s.
5. Delay automatic closed selection. Dip switch5,6,7,8 are for it and the delaying time is 1s,2s,3s,4s,5s,8s,10s,15s,20s,25s,30s,35s,40s,50s,60s for option.
6. The boom angle adjustment, suitable for some areas that the boom can’t reach the vertical position caused by obstacle.
Adjustable for 60°, 70°, 80° and 90°. And the dip switch is another independent one (1 2 switch).
7. Maintenance mode switch, convenient for possible repairing and adjusting.
8. RS485 interface, can connect with computer, check the barrier gate state and alarm information.
9. Parking lot open/close control signal and remote control open/close signal are separate. Arm opening have memory
function, Number of pulse arm opening, and closed after number of cars (must be equipped with a vehicle detector)
10. Emergent stop input signal function.
11. Arm swing out signal input function.
12. Alarm information output function.
13. Barrier gate OK signal output function.
14. All input ports are optoelectronic isolation, the input voltage range is DC5 ~ 24V
15. Vehicle detector signal input and infrared signal input, that is, use the output COM, NC of the loop detector
(normally the No.4 and No.11, specially related with detector, the barrier gate not respond to closing command
when the coil is not connected).The infrared detector uses the NPN type.
