Full Car Park Security Gates Anti Smashing Aluminum IP65 MTBF RS485 / RS232

Shenzhen Maixiang Technology Co.,Ltd
Contact Now

Full Car Park Security Gates Anti Smashing Aluminum IP65 MTBF RS485 / RS232

Brand Name : MAX

Model Number : MX-88

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : Western Union, T/T, L/C/Paypal

Supply Ability : 2000 set/month

Delivery Time : 3-10 working days after received your payment

Packaging Details : Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

name : Smart Barrier Gate

Working temperature : -45°C to 75°C

Operation speed : 0.9s, 2s, 4s

Boom Length : Max 6 meters

Color : White, Grey, Customized

Protection Degree : IP65

Contact Now

Anti Smashing Aluminum IP65 MTBF Full Security Barrier Gate RS485 / RS232

Quick Information
1.Fast speed, can be changed from 0.9sec to 6sec.
2.Double safety limit
3.Three operation modes: Remote control,push button,manually operation.
4.Die-casting aluminum alloy motor,Waterproof,anti-aging ,Anti-sunshine .
5.runs stable and reliable.

Data sheet

Max boom length 6 meters
Opening time 0.6sec to 6sec
Power Max 100w
Housing Material Powder-coated steel/ Aluminum
Net weight (no boom) 43KG
MTBF 10 million times
Working temperature -40°C~+50°C
Protection grade IP65
Driving unit Servo motor

Function Description:

1.When Power off, gate automatically open, no clutch design, no need human intervention. When power on, gate automatically reset,

restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when

power off . Operating arm open and close by hand also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.

2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

5. Closing speed can be adjusted, from 0.9sec to 6sec

6. Barrier gate up&down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button,

software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle

and barrier gate machine.

14. Delay down selection function.

15. high sensitivity arm auto reverse function (intensity can be adjusted)

16. Parking system interface

17.RS485 or RS232 network communication control up&down interface (no need to install communication module)

18. Anti-collision alarm signal interface.

19. Arm direction can be changed easily

20. Adjustable speed port (S curve adjustment)

21. High-strength precision cast steel, industry moving parts beyond the industry quality

RFQ:

Q: What's the order process?

A: Follow the steps on below to complete your order.

- 1. Inquiry

Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request

-2. Quotation

Official quotation form with all clear specifications according to the order

-3. Invoice

Invoice will be issued once the quotation is confirmed.

-4. Payment

Payment shall be issued once the invoice issued. Full payment is acquired.

-5. Production

Bulk production shall be taking 15-25 working days.

-6. Delivery

by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.


Product Tags:

car park security gates



parking barrier arm gate


Wholesale Full Car Park Security Gates Anti Smashing Aluminum IP65 MTBF RS485 / RS232 from china suppliers

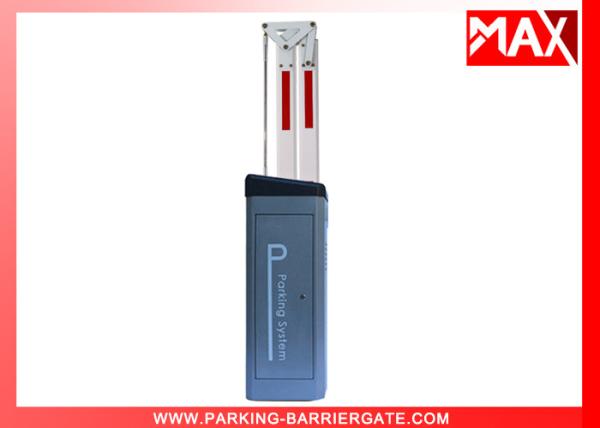

Full Car Park Security Gates Anti Smashing Aluminum IP65 MTBF RS485 / RS232 Images
