Auto Parking Barrier Gate Barrier System with Remote Controller And Limit Switch

AC MOTOR-The Drive Unit

#1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free
# 2 Machine core can automatically warming when the outside temperature is below 0
# 3 Die-casting aluminum alloy machine core and advanced double-stage driving motor, solve the problem of block up
# 4 Motor cooling: Forced ventilation with fan

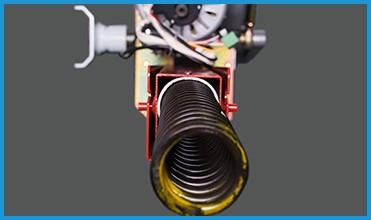

Compressed Balance Spring

Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidentscaused by tension spring

Liberate Cushion

Absorb vibration during the beam rises and falls, which keeps barrier run smoothly and reduce the impact on mechanism core

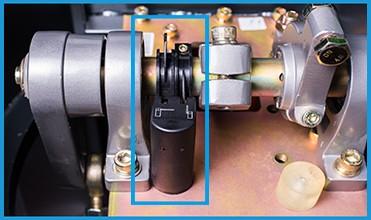

Photoelectronic Limit Switch

Multiple protection mechanism: photoelectric limit, motor sensor memory limit, loop detector, air pressure wave switch, infrared photocell ensure the barrier gate operate accurately and safely

Arm Auto Reverse

Built in smart collision detection technology allows arm to auto reverse when hit on obstacles during closing. Prevent futher damage on vehicle

Swing Out Mechanism
Arm swing out when hit directly by vehicle (only 1second model ) to avoid further damage on the vehicle

Clutch Device

Clutch key can be unlocked to the clutch when power off, conveniently raise the arm without removing the top cover or body housing

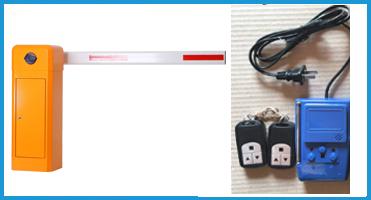

Remote Control

Remote control antenna works with remote control push button and remote control units, easily control arm to rise and fall
