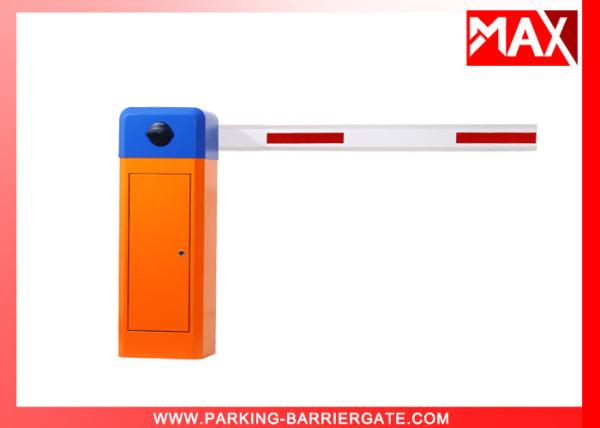

Professional Manual Parking Barrier Gate with 6mts Single Straight Boom
Quick Detail:
| Model | MX-50B |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 48kgs |
| Speed | 1S,1.8S,3S, 6S |
| Max boom length | 6 meters |
| Motor Rotational speed | 1400rmp |
| Protection Degree | IP44 |
Functions&Features:
1. Automatic and manual barriers by MAX are perfect solution for customers who care for enhanced security of their premises or property and for whom the vehicle access control is crucial.
2. No matter, whether you are currently working on a smaller project, large-scale investment or traffic management in your municipal quarters. For more than TEN years MAX company manufacturers and delivers its own customer proven barriers for small to multi-storey car parks, private and company
premises, industrial and hospital premises, hotels, motorways, tunnels, toll stations and other application areas, where it is convenient to use barriers as stand-alone measures or in combination with other access control systems.
3. During the development, the main emphasis was put on utmostreliability, ease of use and safety of operation. Using quality materials and technology ensures long and trouble-free service life of barriers even under demanding conditions with high traffic density.
4. For the most demanding climatic conditions and harsh environments (high humidity, road or sea salts etc.) automatic barriers in stainless steel casing are available.
AC MOTOR-The Drive Unit #1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free
# 2 Machine core can automatically warming when the outside temperature is below 0
# 3 Die-casting aluminum alloy machine core and advanced double-stage driving motor, solve the problem of block up
# 4 Motor cooling: Forced ventilation with fan
|
| Compressed Balance Spring Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidentscaused by tension spring
|
| 100% TESTED
Each barrier passes a complete inspection of all functions prior to shipment. Customers receive only flawless and checked products.
|
| 24/7 CONTINUOUS OPERATION
Automatic barriers by AUTOGARD do not need to rest. They are
designed to deliver maximum performance 24/7. No breaks |
| Arm Auto Reverse Built in smart collision detection technology allows arm to auto reverse when hit on obstacles during closing. Prevent futher damage on vehicle
|
| Swing Out Mechanism
Arm swing out when hit directly by vehicle (only 1second model ) to avoid further damage on the vehicle |
| Clutch Device Clutch key can be unlocked to the clutch when power off, conveniently raise the arm without removing the top cover or body housing
|
| Remote Control Remote control antenna works with remote control push button and remote control units, easily control arm to rise and fall
|
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| MX-50 | Straight boom | 6m | 6 seconds |
| MX-501 | Straight boom | 4.5m | 3 seconds |
| MX-502 | 90 degree, Articulated boom | 5m | 6 seconds |
| MX-503 | 90 degree, Articulated boom | 3m | 3 seconds |
| MX-504 | 180 degree, Articulated boom | 5m | 6 seconds |
| MX-505 | 180 degree, Articulated boom | 3m | 3 seconds |
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
