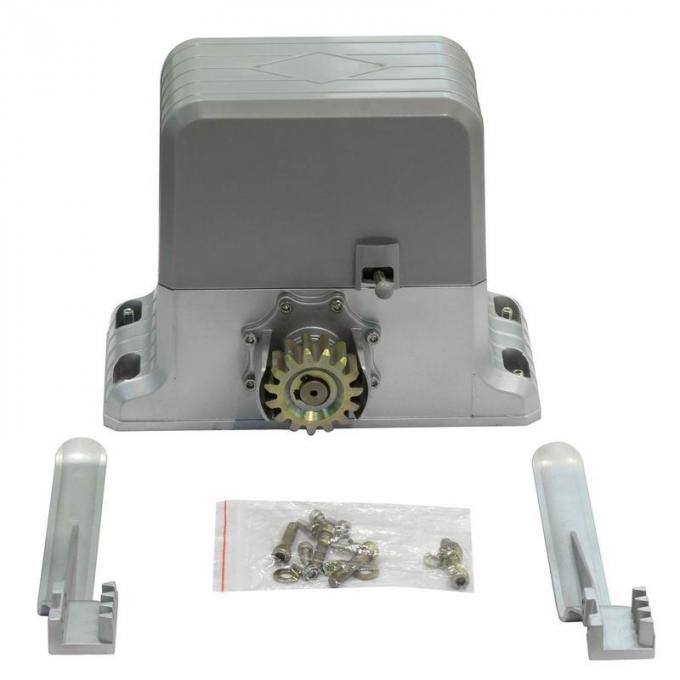

418Mhz remote control Slide Automatic Electrical Gate Door Opener 50/60Hz
Sliding Gate Motor Functions:
1. Max gate weight 1800kg
2.New design of spring limit switch downward
3.Each set include one Motor, one control board, 2pcs transmitters two manual release key and one spring limit switch
4.Mcu is supplied to control the gate operator
5.Keypad/single button interface
6.Photo beam safety beam interface
7.User can select Auto-close function
8.Manual key release design for emergency purposes
Product Description:
Sliding Gate Motor Specifications:
| Product Name | AC system automatic sliding gate motor garage door opener kit for home dealers |
| Voltage | 220V± 10% | 110V± 10% |
| Frequency | 50Hz | 60Hz |
| Current | 2,7A | 5.8A |
| Motor voltage | AC 220V/110V |
| Capacitor | 20μ F | 60μ F+14μ F |
| Power | 350W |
| Torque | 35nm |
| Motor number | M=4 |
| Motor speed | 1350rpm | 1620rpm |
| Gear speed | 58.8rpm | 70.2rpm |
| Travel speed | 11m/min | 13.2m/min |
| Working temperature | -40°C~55°C |
| Overload protection temperature | 130°C |
| Motor making technique | Die casting aluminum alloy |
| Manual Release | Yes |
| Remote distance | ≥ 30m |
| Net weight | 10kg |
| Max, weight of gate | 1500kg |
Parking List:
| Packing list |
| Name | Quantity | Unit | Remark |
| Sliding gate operator | 1 | set | Necessary |
| Remote control | 2 | pcs | Necessary |
| Internal hexangular bolt | 4 | pcs | M8*40 |
| Internal hexangular bolt | 4 | pcs | M6*16 |
| Left limit iron | 1 | pcs | Necessary |
| Right limit iron | 1 | pcs | Necessary |
| Base board | 1 | pcs | Necessary |
| Release key | 2 | pcs | Necessary |
| Manual | 1 | pcs | Necessary |
| Infrared photocell | 1 | set | Optional |
| Radio emitter | 1 | set | Optional |
FAQ:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
