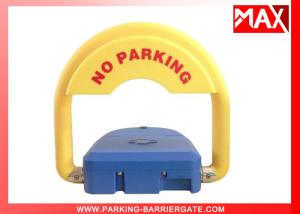

Anti-theft Car Parking Locks System And Waterproof Durable Battery
Quick Detail:
1. Name: Parking Lock
2. Protection Grade: IP57
3. Application: Parking System
4. Standard Voltage: DC12V
5. Operational Current: 0.4A
6. Certificate: CE, ISO, SGS
7. Net Weight: 8KG
8. Up to Down Time: 4-6s
Applications:
User Scope of products: car owners property management company Property Management Office parking local production house developers Automobile Dealers auto shop security companies, security shop
Specifications:
| Voltage |
AC 110V-240V |
| Working current |
1.5A |
| Protection class |
IP57 |
| Remote distance |
≤50m |
| Operating speed |
5-6s |
| Shell materials |
A3 steel |
| Shell thickness |
3mm |
| Shell handling |
Spray paint |
| Dimension (down) |
520*460*70 mm |
| Dimension (Up) |
520*315*400 mm |
| Car stop width |
520 mm |
| Car stop height |
400 mm |
| Net weight |
13.5kg |
| Bearing weight |
5 T |
| Working temperature |
-30℃— + 65℃ |
| Battery Dimension |
15*3.5*9.5cm |
| Battery Voltage and current |
6V 7.6Ah |
| Charging time |
No need to charge |
| Using time |
800 times |
| Logo |
Can make client’s logo |
Description:
1. Protect your parking place from being occupied. Easy to use
2. Circuit protection: with reliable MCU and IC circuit intelligent control
3. Durable: Bearing weight up to 5 ton, the heavy weight loading on it , it won’t be out of shape and destroyed
4.Waterproof ,rustproof
5. Reset function: when go down or go up, meet the resistance from the outside force, it ‘ll reset itself, going to the original way, so that protect the control panel’s function
6.Noise-free: bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction
7.Theftproof: the mounting bolts are installed inside of the cabinet. No one can open it without key
8 Easy installation: four prepared holes at the bottom of the cabinet makes it easy to install
9 Manual operation: to operate the parking locks rising and going down manually with manual at emergency situation
10. Alarm function: when overloading, over voltage and coming across hamper
11 .Feasibility: suitable for all parking place and all kinds of car.
